本文主要分析controller-runtime的源码，源码版本为v0.16.3
1. 概述
controller-runtime源码地址：https://github.com/kubernetes-sigs/controller-runtime。
controller-runtime项目是一个用于快速构建k8s operator的工具包。其中kubebuilder和operator-sdk项目都是通过controller-runtime项目来快速编写k8s operator的工具。
本文以kubebuilder的代码生成架构为例，分析controller-runtime的逻辑。kubebuilder框架生成的代码参考：https://github.com/huweihuang/venus

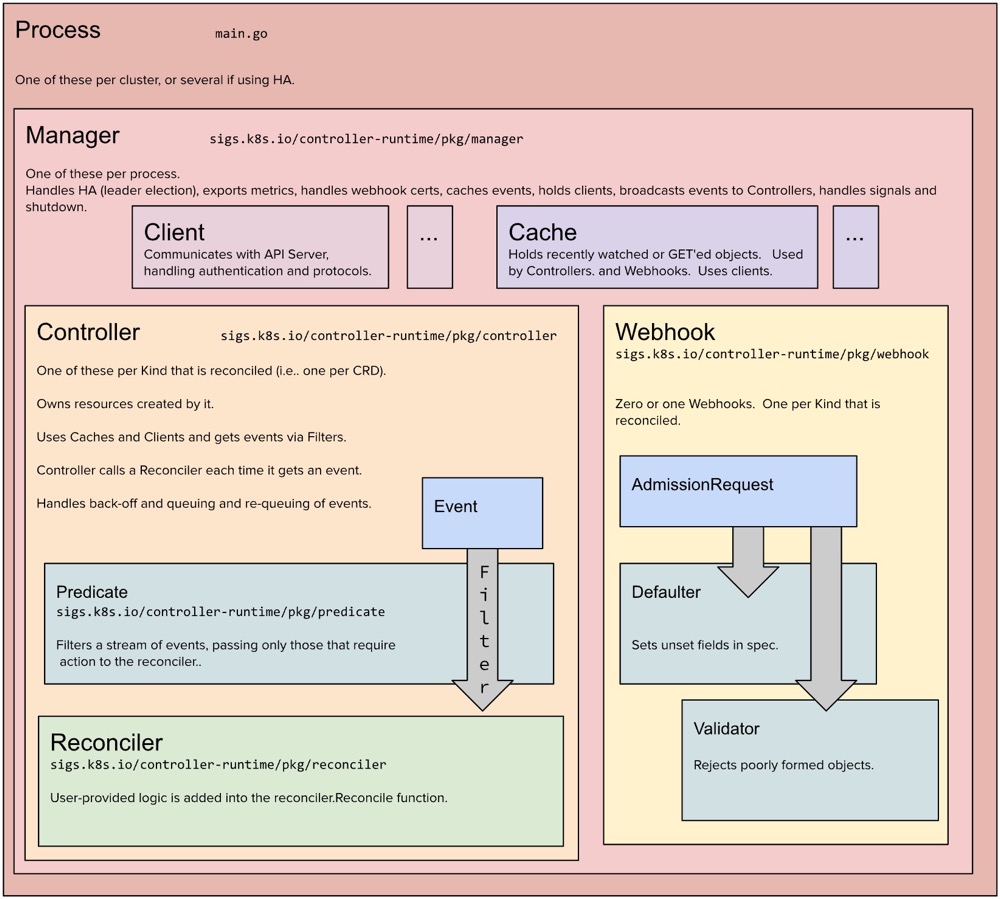

2. controller-runtime架构图
代码目录：
pkg
├── builder
├── cache
├── client # client用于操作k8s的对象
├── cluster
├── config
├── controller # controller逻辑
├── envtest
├── event
├── finalizer
├── handler
├── internal # 核心代码 controller的具体实现
├── leaderelection
├── manager # 核心代码
├── predicate
├── ratelimiter
├── reconcile
├── recorder
├── scheme
├── source
└── webhook
3. Operator框架逻辑
代码参考：https://github.com/huweihuang/venus/blob/main/cmd/app/operator.go#L71
operator代码框架的主体逻辑包括以下几个部分。
manager：主要用来管理多个的controller，构建，注册，运行controller。controller：主要用来封装reconciler的控制器。reconciler：具体执行业务逻辑的函数。
manger的框架主要包含以下几个部分。
mgr:=ctrl.NewManager：构建一个manager对象。
Reconciler.SetupWithManager(mgr)：注册controller到manager对象。
mgr.Start(ctrl.SetupSignalHandler())：运行manager从而运行controller的逻辑。
代码如下：
// 构建manager对象，主要的初始化参数包括
// - kubeconfig
// - controller的option参数
mgr, err := ctrl.NewManager(ctrl.GetConfigOrDie(), ctrl.Options{
Scheme: scheme,
Metrics: metricsserver.Options{BindAddress: opt.MetricsAddr},
HealthProbeBindAddress: opt.ProbeAddr,
LeaderElection: opt.EnableLeaderElection,
LeaderElectionID: "52609143.huweihuang.com",
Controller: config.Controller{
MaxConcurrentReconciles: opt.MaxConcurrentReconciles,
},
})
// 将controller注册到manager中，并初始化controller对象。
if err = (&venuscontroller.RedisReconciler{
Client: mgr.GetClient(),
Scheme: mgr.GetScheme(),
}).SetupWithManager(mgr); err != nil {
setupLog.Error(err, "unable to create controller", "controller", "Redis")
return err
}
// 运行manager对象，从而运行controller中的reconcile逻辑。
if err := mgr.Start(ctrl.SetupSignalHandler()); err != nil {
setupLog.Error(err, "problem running manager")
return err
}
4. NewManager
NewManager初始化一个manager 用来管理和创建controller对象。一个manager可以关联多个controller对象。manager是一个接口，而最终是实现结构体是controllerManager的对象。
4.1. Manager接口
type Manager interface {
// Cluster holds a variety of methods to interact with a cluster.
cluster.Cluster
// Add will set requested dependencies on the component, and cause the component to be
// started when Start is called.
// Depending on if a Runnable implements LeaderElectionRunnable interface, a Runnable can be run in either
// non-leaderelection mode (always running) or leader election mode (managed by leader election if enabled).
// 通过Runnable接口将具体的controller注册到manager中。
Add(Runnable) error
// Start starts all registered Controllers and blocks until the context is cancelled.
// Returns an error if there is an error starting any controller.
//
// If LeaderElection is used, the binary must be exited immediately after this returns,
// otherwise components that need leader election might continue to run after the leader
// lock was lost.
// 运行具体的逻辑
Start(ctx context.Context) error
}
4.2. NewControllerManager
New构建一个具体的controllerManager的对象。
func New(config *rest.Config, options Options) (Manager, error) {
// Set default values for options fields
options = setOptionsDefaults(options)
...
errChan := make(chan error)
runnables := newRunnables(options.BaseContext, errChan)
return &controllerManager{
stopProcedureEngaged: pointer.Int64(0),
cluster: cluster,
runnables: runnables,
errChan: errChan,
recorderProvider: recorderProvider,
resourceLock: resourceLock,
metricsServer: metricsServer,
controllerConfig: options.Controller,
logger: options.Logger,
elected: make(chan struct{}),
webhookServer: options.WebhookServer,
leaderElectionID: options.LeaderElectionID,
leaseDuration: *options.LeaseDuration,
renewDeadline: *options.RenewDeadline,
retryPeriod: *options.RetryPeriod,
healthProbeListener: healthProbeListener,
readinessEndpointName: options.ReadinessEndpointName,
livenessEndpointName: options.LivenessEndpointName,
pprofListener: pprofListener,
gracefulShutdownTimeout: *options.GracefulShutdownTimeout,
internalProceduresStop: make(chan struct{}),
leaderElectionStopped: make(chan struct{}),
leaderElectionReleaseOnCancel: options.LeaderElectionReleaseOnCancel,
}, nil
}
5. SetupWithManager
SetupWithManager将具体的controller注册到manager中。其中通过Complete完成controller的初始化。
// SetupWithManager sets up the controller with the Manager.
func (r *RedisReconciler) SetupWithManager(mgr ctrl.Manager) error {
return ctrl.NewControllerManagedBy(mgr).
For(&venusv1.Redis{}).
Complete(r)
}
SetupWithManager通过NewControllerManagedBy方法构建了一个Builder的对象。
// Builder builds a Controller.
type Builder struct {
forInput ForInput
ownsInput []OwnsInput
watchesInput []WatchesInput
mgr manager.Manager
globalPredicates []predicate.Predicate
ctrl controller.Controller
ctrlOptions controller.Options
name string
}
// ControllerManagedBy returns a new controller builder that will be started by the provided Manager.
func ControllerManagedBy(m manager.Manager) *Builder {
return &Builder{mgr: m}
}
通过builder对象完成controller的初始化。
5.1. controller初始化
// Build builds the Application Controller and returns the Controller it created.
func (blder *Builder) Build(r reconcile.Reconciler) (controller.Controller, error) {
// Set the ControllerManagedBy
if err := blder.doController(r); err != nil { // 初始化controller
return nil, err
}
// Set the Watch
if err := blder.doWatch(); err != nil { // 添加event handler
return nil, err
}
return blder.ctrl, nil
}
doController最终通过调用NewUnmanaged构建一个controller对象。并传入自定义的reconciler对象。
func New(name string, mgr manager.Manager, options Options) (Controller, error) {
c, err := NewUnmanaged(name, mgr, options)
...
// Add the controller as a Manager components
return c, mgr.Add(c)
}
// NewUnmanaged returns a new controller without adding it to the manager. The
// caller is responsible for starting the returned controller.
func NewUnmanaged(name string, mgr manager.Manager, options Options) (Controller, error) {
if options.Reconciler == nil {
return nil, fmt.Errorf("must specify Reconciler")
}
...
// Create controller with dependencies set
return &controller.Controller{
Do: options.Reconciler, // 将具体的reconciler函数传递到controller的reconciler。
MakeQueue: func() workqueue.RateLimitingInterface {
return workqueue.NewRateLimitingQueueWithConfig(options.RateLimiter, workqueue.RateLimitingQueueConfig{
Name: name,
})
}, // 初始化任务队列
MaxConcurrentReconciles: options.MaxConcurrentReconciles, // 设置controller的并发数
CacheSyncTimeout: options.CacheSyncTimeout,
Name: name,
LogConstructor: options.LogConstructor,
RecoverPanic: options.RecoverPanic,
LeaderElected: options.NeedLeaderElection,
}, nil
5.2. 添加event handler
doWatch最终会运行informer.start添加event handler。
// Watch implements controller.Controller.
func (c *Controller) Watch(src source.Source, evthdler handler.EventHandler, prct ...predicate.Predicate) error {
c.mu.Lock()
defer c.mu.Unlock()
// Controller hasn't started yet, store the watches locally and return.
//
// These watches are going to be held on the controller struct until the manager or user calls Start(...).
if !c.Started {
c.startWatches = append(c.startWatches, watchDescription{src: src, handler: evthdler, predicates: prct})
return nil
}
c.LogConstructor(nil).Info("Starting EventSource", "source", src)
return src.Start(c.ctx, evthdler, c.Queue, prct...)
}
add event handler
func (is *Informer) Start(ctx context.Context, handler handler.EventHandler, queue workqueue.RateLimitingInterface,
prct ...predicate.Predicate) error {
// Informer should have been specified by the user.
if is.Informer == nil {
return fmt.Errorf("must specify Informer.Informer")
}
_, err := is.Informer.AddEventHandler(internal.NewEventHandler(ctx, queue, handler, prct).HandlerFuncs())
if err != nil {
return err
}
return nil
}
6. mgr.Start
controllerManager运行之前注册的runnables的函数，其中包括controller的函数。
func (cm *controllerManager) Start(ctx context.Context) (err error) {
// Start and wait for caches.
if err := cm.runnables.Caches.Start(cm.internalCtx); err != nil {
}
// Start the non-leaderelection Runnables after the cache has synced.
if err := cm.runnables.Others.Start(cm.internalCtx); err != nil {
}
// Start the leader election and all required runnables.
{
ctx, cancel := context.WithCancel(context.Background())
cm.leaderElectionCancel = cancel
go func() {
if cm.resourceLock != nil {
if err := cm.startLeaderElection(ctx); err != nil {
cm.errChan <- err
}
} else {
// Treat not having leader election enabled the same as being elected.
if err := cm.startLeaderElectionRunnables(); err != nil {
cm.errChan <- err
}
close(cm.elected)
}
}()
}
...
}
6.1. controller.start
start主要包含2个部分
- 同步cache：WaitForSync
- 启动指定并发数的worker：processNextWorkItem
该部分的代码逻辑跟k8s controller-manager中的具体的controller的逻辑类似。
func (c *Controller) Start(ctx context.Context) error {
...
err := func() error {
...
for _, watch := range c.startWatches {
syncingSource, ok := watch.src.(source.SyncingSource)
// 同步list-watch中的cache数据。
if err := func() error {
if err := syncingSource.WaitForSync(sourceStartCtx); err != nil {
...
}
}
}
// 运行指定并发数的processNextWorkItem任务。
// Launch workers to process resources
c.LogConstructor(nil).Info("Starting workers", "worker count", c.MaxConcurrentReconciles)
wg.Add(c.MaxConcurrentReconciles)
for i := 0; i < c.MaxConcurrentReconciles; i++ {
go func() {
defer wg.Done()
// Run a worker thread that just dequeues items, processes them, and marks them done.
// It enforces that the reconcileHandler is never invoked concurrently with the same object.
for c.processNextWorkItem(ctx) {
}
}()
}
...
}
6.2. processNextWorkItem
经典的processNextWorkItem函数，最终调用reconcileHandler来处理具体的逻辑。
func (c *Controller) processNextWorkItem(ctx context.Context) bool {
obj, shutdown := c.Queue.Get()
if shutdown {
// Stop working
return false
}
defer c.Queue.Done(obj)
ctrlmetrics.ActiveWorkers.WithLabelValues(c.Name).Add(1)
defer ctrlmetrics.ActiveWorkers.WithLabelValues(c.Name).Add(-1)
c.reconcileHandler(ctx, obj)
return true
}
7. reconcileHandler
reconcileHandler部分的代码是整个reconciler逻辑中的核心，自定义的reconciler函数最终是调用了reconcileHandler来实现，并且该函数描述了具体的任务队列处理的几种类型。
err != nil：如果错误不为空，则重新入队，等待处理。result.RequeueAfter > 0：如果指定RequeueAfter > 0，则做延迟入队处理。result.Requeue：如何指定了requeue则表示马上重新入队处理。err == nil: 如果错误为空，表示reconcile成功，则移除队列的任务。
func (c *Controller) reconcileHandler(ctx context.Context, obj interface{}) {
// 获取k8s crd的具体对象
req, ok := obj.(reconcile.Request)
if !ok {
// As the item in the workqueue is actually invalid, we call
// Forget here else we'd go into a loop of attempting to
// process a work item that is invalid.
c.Queue.Forget(obj)
c.LogConstructor(nil).Error(nil, "Queue item was not a Request", "type", fmt.Sprintf("%T", obj), "value", obj)
// Return true, don't take a break
return
}
// 调用用户定义的Reconcile函数，并对返回结果进行处理。
result, err := c.Reconcile(ctx, req)
switch {
case err != nil:
// 如果错误不为空，则重新入队，等待处理
if errors.Is(err, reconcile.TerminalError(nil)) {
ctrlmetrics.TerminalReconcileErrors.WithLabelValues(c.Name).Inc()
} else {
c.Queue.AddRateLimited(req)
}
case result.RequeueAfter > 0:
// 如果指定了延迟入队，则做延迟入队处理
c.Queue.Forget(obj)
c.Queue.AddAfter(req, result.RequeueAfter)
case result.Requeue:
// 如果指定了马上入队，则做相应处理
c.Queue.AddRateLimited(req)
default:
// 如果错误为空，表示reconcile成功，则移除队列的任务
log.V(5).Info("Reconcile successful")
// Finally, if no error occurs we Forget this item so it does not
// get queued again until another change happens.
c.Queue.Forget(obj)
}
}
8. 总结
- controller-runtime封装了k8s-controller-manager控制器的主要逻辑，其中就包括创建list-watch对象，waitForSync等，创建任务队列，将任务处理的goroutine抽象成一个reconcile函数，使用户更方便的编写operator工具。
- kubebuilder是一个基于controller-runtime框架的命令生成工具。可以用于快速生成和部署crd对象，快速生成controller-runtime框架的基本代码。
- controller-runtime框架的最核心需要处理的代理及处理reconcile函数，该函数定义了4种错误处理及入队重试的类型。可以根据具体的业务需求选择合适的方法来处理。
